Gooseneck

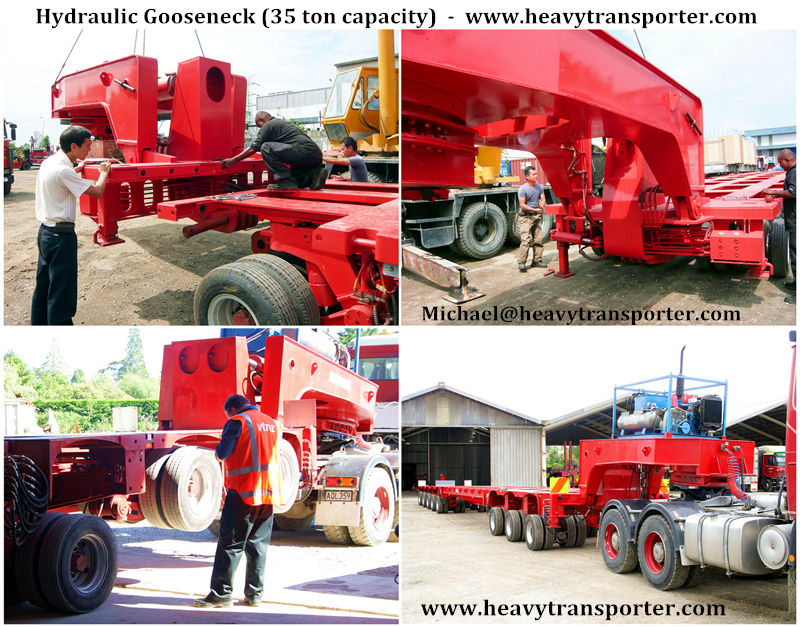

Hydraulic Gooseneck – www.heavytransporter.com

• 5th wheel plate supported on ball bearing race ring, including 3.5 inch kingpin and adjustable steering wedge
• Integrated hydro-mechanical double steering for activating the steering system
• Lifting and lowering by means of hydraulic, including hydraulic supporting cylinders
• Hydraulic differential gear
• Hydraulic connection to the prime mover
• Clearance radius 2,800 mm for usage of a 4 axle tractor
• Lubrication points brought together behind the steering box
• Operation devices for hydraulic functions on the left side, including protection cover
• Device for attaching claw coupling head of drivers loading decks
• Integrated lashing coupling for attaching THP bogies
• 1 pair lashing rings in the rear, APS 8
• Hydraulic connection to tractor
